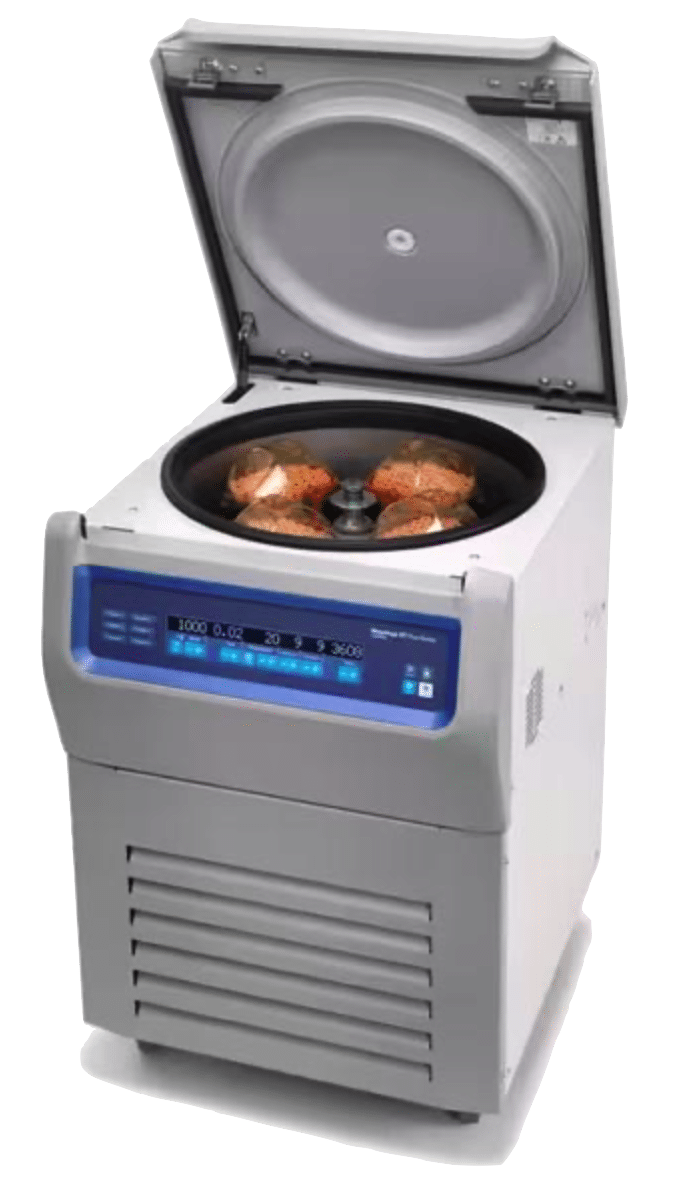

The Thermo Scientific Megafuge ST4FR Plus Refrigerated Floor Centrifuge is shown with its lid open, revealing test tube holders inside and a digital control panel on the front.

Thermo Scientific Megafuge ST4FR Plus Refrigerated Floor Centrifuge

$20,897.90

Volume Pricing Guide

Only the lyophilized product is provided. For research use only. All supplies sold separately.

Section divider line

Summary

The Thermo Scientific ST4FR Plus refrigerated floor megafuge (75009946) is the base unit only and does not come with a rotor. The Thermo Scientific ST4F plus series of floor standing centrifuges feature ergonomic design, standard high contrast user interface for up to 6 saved programs with simple push-button operation for routine applications. With capacity up to 4 L, including 196×5/7 ml blood tubes and 40×50 ml conical tubes, Auto-Lock for fast rotor exchange and 11 available rotors to choose from. Floor standing unit save bench space.
  • Intuitive controls simplify operation and provide detailed information on a wide range of operating parameters and processing status for optimal performance.
  • Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
  • Motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches.
  • Secure locking system allows easy push-button installation and exchange of rotors.
  • System saves time when switching between applications.
  • Easy access to rotor chamber offers quick cleaning, a healthier working environment and longer unit life.
  • Biocontainment solution seals with a snap; eliminates screw caps and complicated clips.
  • System has glove-friendly, one-handed open/close capability.
  • System is certified by CAMR™ in Porton Down, UK.
  • Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option:
  • Technology optimizes safety and improves separations.
  • Compact dimensions optimize work area and ergonomic height and curved design ensure easy sample loading and unloading and easy cleaning.
  • System offers up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tubes processing.
  • Space saving floor model design
  • 5 year limited warranty

Maximum Capacity Swinging bucket rotors: 4 x 1,000 mL with TX-100 rotor; Fixed angle rotors: 6 x 100 mL with F15-6×100 or F10-6×100 rotor
Maximum Speed Swinging bucket rotors: 5,300 rpm with BIOShield 1000A rotor Fixed angle rotors: 15,200 rpm with F21-48×2, Microliter 48×2 or Microliter 30×2
Maximum RCF Swinging bucket rotors: 5,590 x g with BIOShield 1000A rotor Fixed angle rotor: 25,830 x g with Microliter 30×2
Control System Microprocessor
Refrigerated yes, -10° to 40°C temperature range
Drive System Direct, brushless induction low profile motor
Acceleration/Deceleration Profiles Choices of 9 acceleration / 10 deceleration rates
Material Front, top, sides: PC-ABS plastic painted with 2K PUR-based lacquer Metal housing: cold rolled steel powder coated Centrifuge bowl: corrosion-resistant high thermal conductivity (stainless steel 1.4301 cold rolled) Feet: rubber
Rotor Locking System Push-button Auto-Lock
Safety Features SMARTSpin imbalance detection, finger-pinch prevention, crash-proof construction
Number of Compatible Rotors 12
Display Push button and high contrast LCD interface
Run Time max 9h, 59min; also with continuous and pulse modes
Timer count down only
Program Storage up to 6 run programs
Programmability via 6 direct run programs
Electrical Requirements 120 Volt
Warranty 5 Year Limited (2 years standard warranty + 3 additional years on motor and refrigeration)
Technical Standards EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15
Certifications ISO 14971, ISO 13485, ISO 9001
Dimensions (WxDxH) 22.3 x 27.2 x 32.8 inches (56.6 x 69 x 83.5 cm) / 54.1 inches (135 cm) height open cover
Net Weight 319 lbs (145 kg)
Includes Printed English user manual, USB stick with 28 languages of user manual, corrosion resistant oil (70009824), power cord, declaration of conformity
